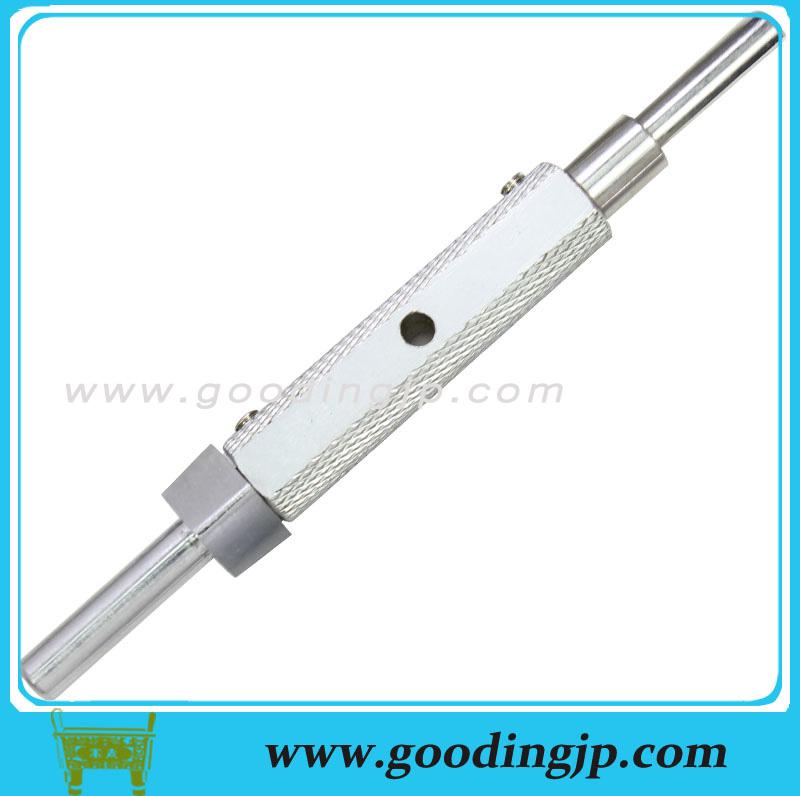

Part Number

-

P

-

W

-

S

-

F

-

L

-

B

Type

Config. Material Code

D

KJPDC16

-

P10.97

-

W8.47

-

S6.00

-

F2.0

-

L5

-

B10

S	g6
3.00	-0.002 -0.008
3.01~ 6.00	-0.004 -0.012
6.01~10.00	-0.005 -0.014
10.01~18.00	-0.006 -0.017
18.01~29.00	-0.007 -0.020

Select Type, Material Code and D Dimension.

Part Number					0.01mm Increment			0.1mm Increment	1mm Increment		M
①Standard		②Stepped		D	P	W	S ②Stepped Type only	F (F≤S/2) ②Stepped Type only	L	B ②Stepped Type only
Type	Material Code	Type	Material Code
KJP	SC SHC SCS SCC	(S???0 -0.02/F???0 -0.05) KJP (Sg6/F???0 -0.03) KJPG	DC DHC DCS DCC	8	4.00~ 6.00	P>W>S (W≥3.01)	3.00~ 5.00	0.3~ 2.5	Standard 5~30*1 Stepped 5~20	Stepped Type only 5~20	M4
				10	4.00~ 8.00		3.00~ 7.00	0.3~ 3.5			M5
				12	4.00~10.00		3.00~ 9.00	0.5~ 4.5
				16	6.00~14.00		4.00~13.00	0.5~ 6.5
				20	10.00~18.00		6.00~17.00	1.0~ 8.5
				25	14.00~22.00		8.00~21.00	2.0~10.5
				10L	10.00~16.00		5.00~15.00	1.0~ 7.5
				12L	12.00~20.00		6.00~19.00	2.0~ 9.5
				16L	16.00~25.00		8.00~24.00	2.0~12.0
				20L	20.00~30.00		10.00~29.00	2.0~14.5

[ ! ]Large Head Type (D=10L~20L) is only available for 1045 Carbon Steel. [ ! ]When the S dimension tolerance is g6, D-Shaped section cannot be made very thin. (S≥5.00 F≥1.0; F≥1.5 when D=20)
*1 L=21~30 is available only when the following conditions are all satisfied: Material: 1045 Carbon Steel Handle Dia. D≥10, Pin Dia.: P≥6, W≥5
